Designed for safety, flexibility and independence.

Guldmann GH1 Ceiling Hoist

Easy to use
The GH1 system enables the care staff to lift and move users without risking any back strain. The GH1 ceiling hoist quickly and safely lifts users weighing up to a maximum of 255 kg, operated by an ergonomically correct and easy-to-use hand control. Quicker lifting frees up more time for highly important nursing and caring tasks.

Quick recharging
The GH1 is quickly recharged by placing the hand control in the GH1 recharging dock. Recharging normally only takes 2-3 hours, and a fully charged lifting module can cope with more than 55 lifts of 85 kg.

GH1 lifting modules can be mounted in most types of rails.

Safe and reliable
The GH1 ceiling hoist complies with all relevant standards, and is extremely safe and reliable in use.

The GH1 shares much of the same DNA as the award winning GH3 ceiling hoist that has been installed in many of the most prestigious hospitals around the world. The GH1 ceiling hoist system makes full use of innovative and robust GH3 technology, design, functionality and cost- effectiveness.

Lifting capacity 175 – 205 – 255kg

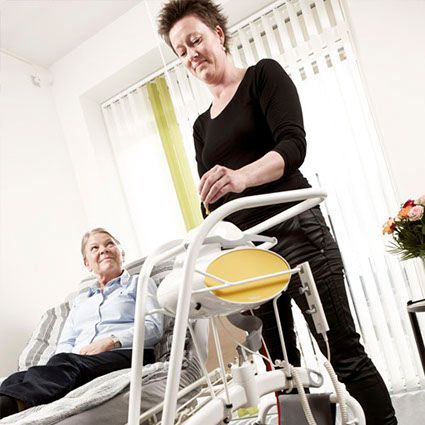

GULDMANN GH1F

The GH1 F – is a flexible lifting module that is easy to move from one room to another by means of the transport and storage cart. It installs and removes itself automatically from the rail system, and eliminates any lifting, stretching or straining by the care staff in the process of moving and installing the lift.

With the GH1 F you can decide to install rails in several rooms and use fewer lifting modules that in the day- to-day care can easily be moved from one room to another.

Flexible, efficient and safe



Once installed the GH1 F gives you exactly the same functions as the GH1 lifting module – and delivers the same benefits as a fixed ceiling lift:

Lifting capacity 175 – 205 – 250kg

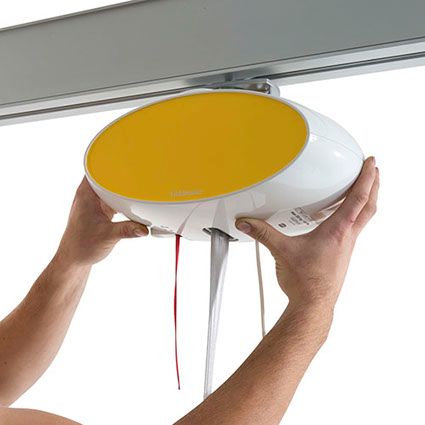

GULDMANN GH1Q

Click-on/click-off
The GH1 Q lifting module has a quick-release system that makes it very easy to click-on and click-off the lifting module from the rails, if from time to time it’s necessary to relocate the lifting module to another room or residence. The moving of the lifting module can be accomplished without any use of tools.

Lifting capacity 175 – 205 – 250kg

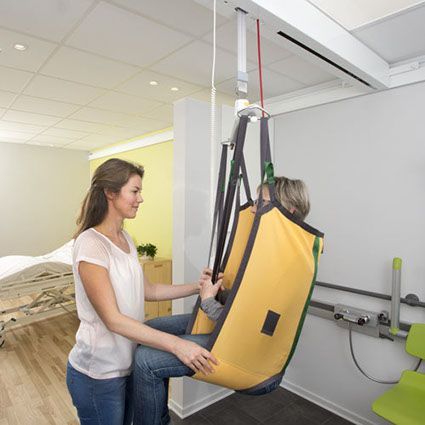

Guldmann GHZERO

Discreet and elegant

• Blends perfectly into the room and is almost invisible when not in use
• Integrated two-sided cupboard available for storage of hanger

Easy and efficient

• Easy and economical installation
• Easy to remove and re-install
• Install directly on all kinds of walls
• Flexible traverse rail: Automatically compensates for non-aligned (oblique) walls with up to 80 mm/3”
• Maximum lifting capacity: 255 kg/560 lbs

Simple and flexible

• Complete room coverage and effective transfers
• Comfortable and smooth movement
• Easy to operate



Improved lifting height

• Compared with other ceiling hoists the GHZ offers even more valuable lifting height

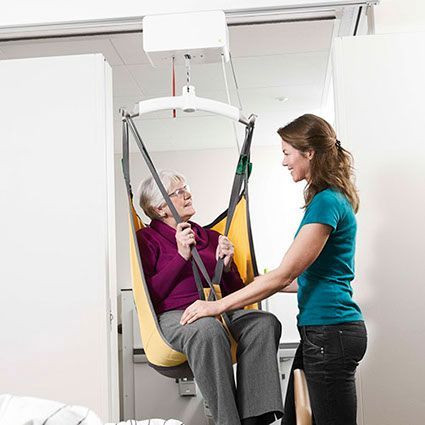

Guldmann GH3

The Guldmann GH3 is a modular system which comprises of:

GH3
User-friendly and extremely powerful and fast lifting module for permanent installation.
Lifting capacity 200 or 250 kg

GH3+
Similar to GH3, but with options like integrated scale, Care Lift Management and service monitoring system and even faster lifting speed. Lifting capacity 200, 250, 300 or 350 kg

GH3/GH3+ with drive motor
For horizontal movement of the lifting module in the rail system the GH3 and GH3+ are available with drive motor.
They can be operated with standard hand control (with cord) or with optional infra-red (IR) remote control.

With Guldmann service software, the operation of each lifting module can be monitored continuously and updates will be carried out during the annual service. The display automatically shows when any kind of service is required.

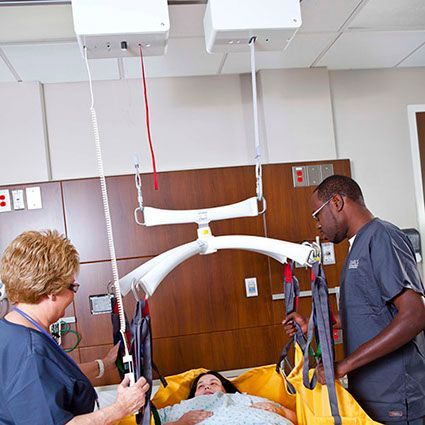

Guldmann GH3 TWIN

The GH3 Twin give you the option to lift in excess of 350kg and up to 500kg. The twin motor also enables the care provider to alter the user’s position whilst in the sling, making lighter work to reposition the user into seated positions, or provide comfort whilst in the sling. The horizontal traverse drive motors are not available for the heavy-duty model.
